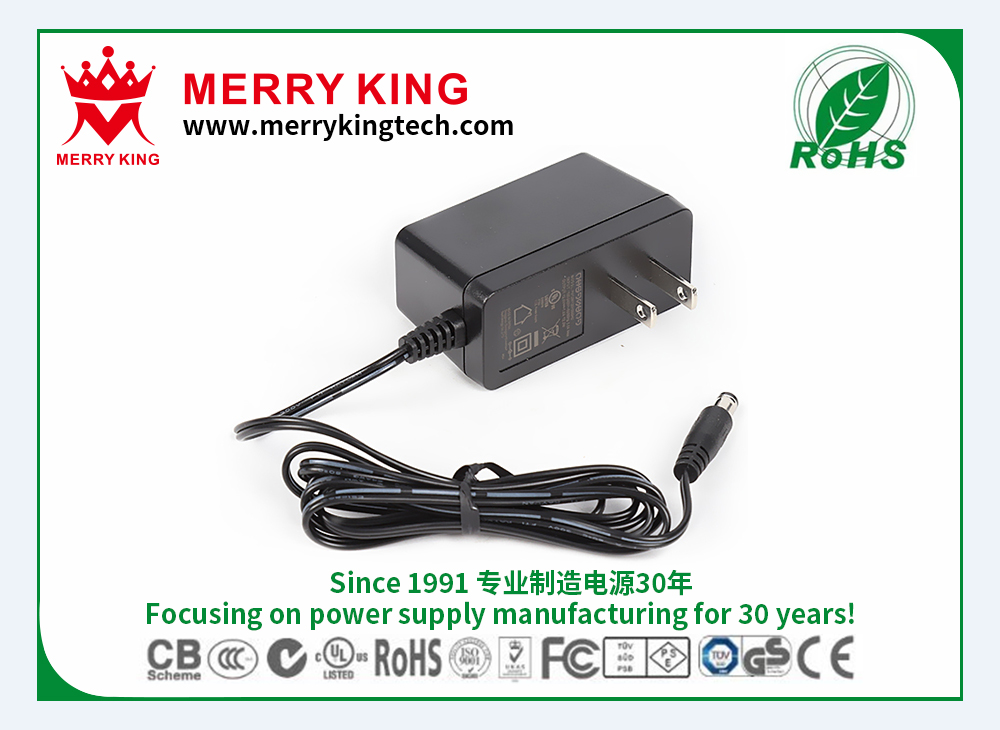

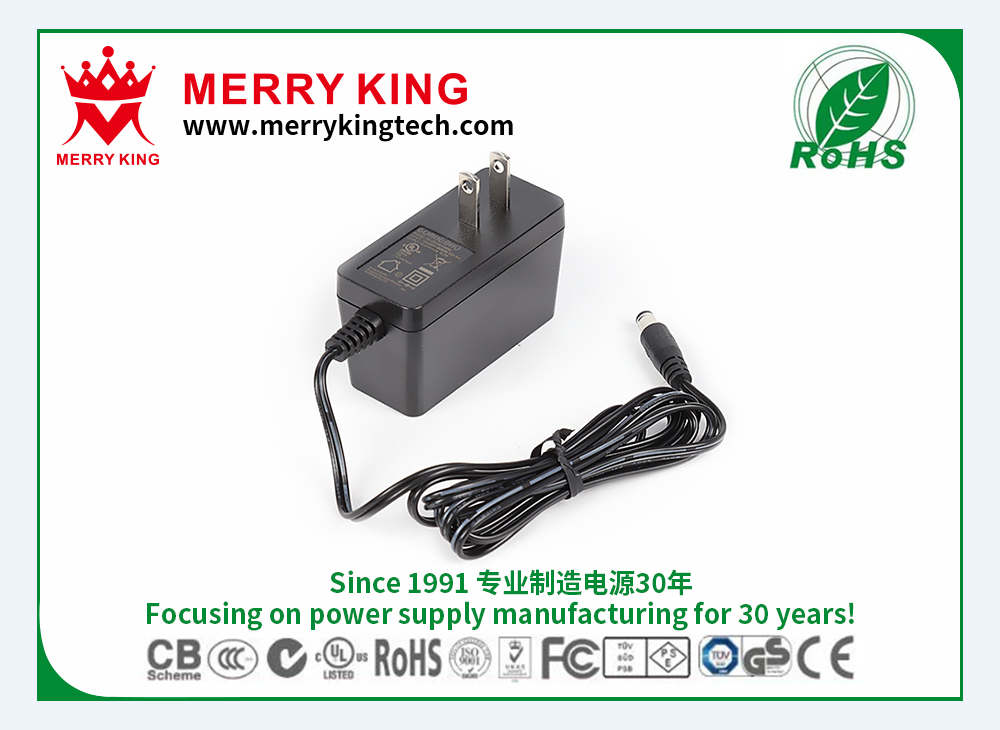

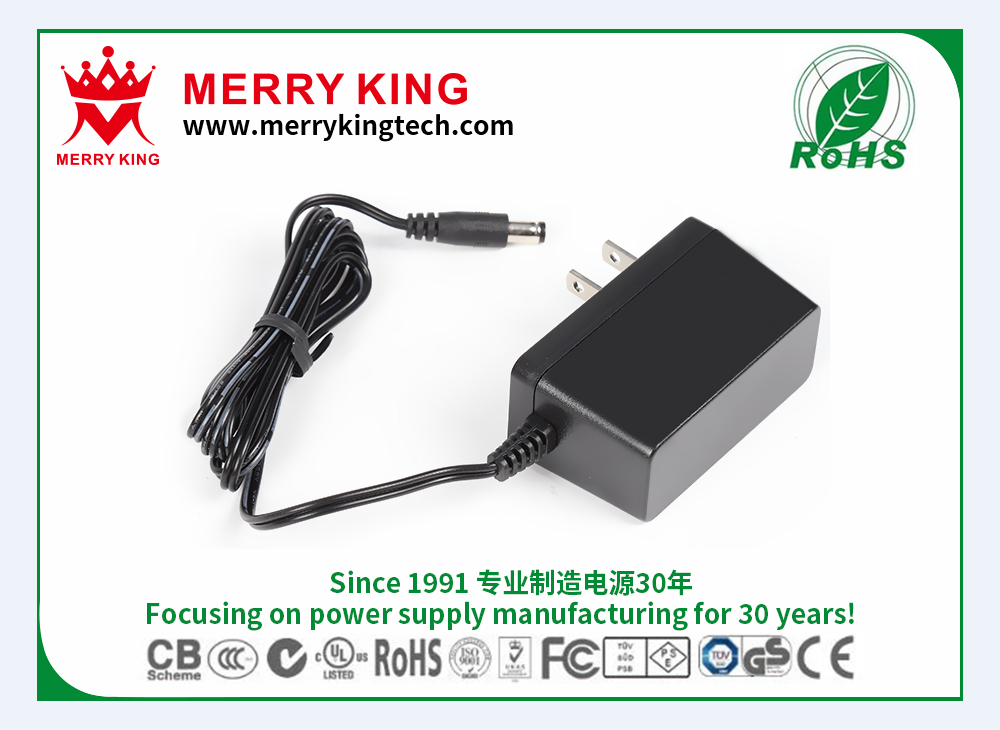

EI-48 Linear Adapter Series

Input voltage: AC 100/110/120/220/230/240V 50/60 Hz

Input plugs : Japan; Taiwan; USA,Canada,China; South Korea; Europe; Australia.

Wall and desktop type.

Output voltage:3-28V       Output current: 300-2500 mA

AC Maximum power output: 24W(24VA)    DC Maximum power output: 18W(18VA)

Operating temperature: 0℃~+40℃         Storage temperature: -40℃~+85℃

Relative humidity: 5% to 95% non-condensing

Load regulation: +/-5% variations from minimum to maximum output current.

Insulation resistance: 500VDC Supplied,100M Ohms Minimum Between input to output plug & Case.

HI-POT Test: 1240/3750VAC of 1 minute Between Input To output plug & Case.

 (Leakage Current 1 mA).

Inrush current: 90 mA Max.

Mean time between failure: 100,000 hours minimum at full load 25℃ ambient

Temperature Rise: 75 ℃ Max On Primary Coil By The Resistance Method,

 And 50 ℃ Max On The Surface Of The Case By The Thermometer Method At 25℃ Ambient, Rated Load condition.

EMI requirements: CE EN 55022:55024; FCC Part 15 Class B

Safety requirements: PSE/UL/CUL;IEC60950; EN61558; EN60950-1; UL1310;UL1950

Warranty:5 years
